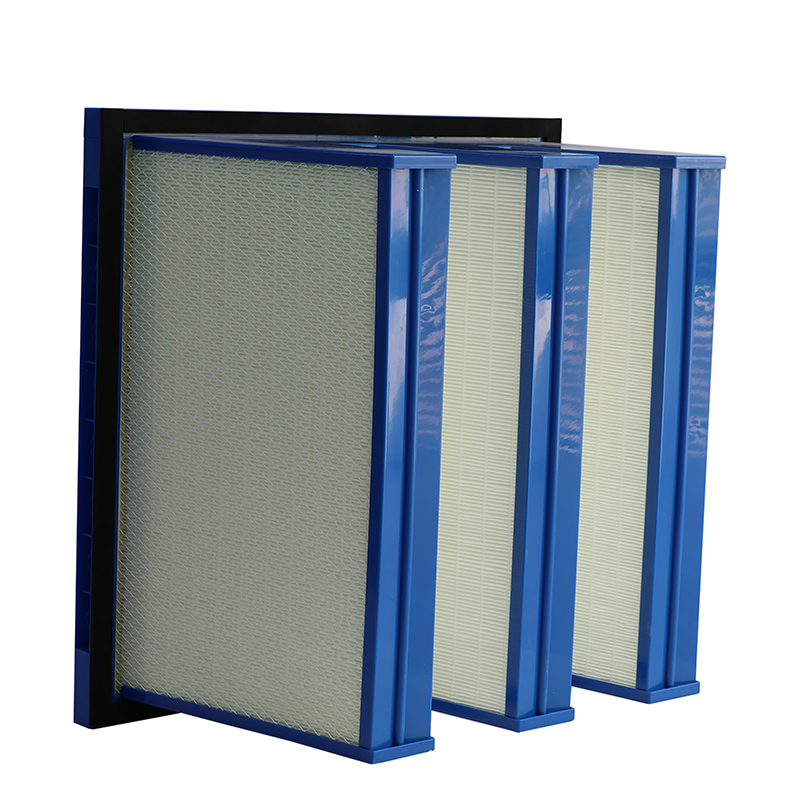

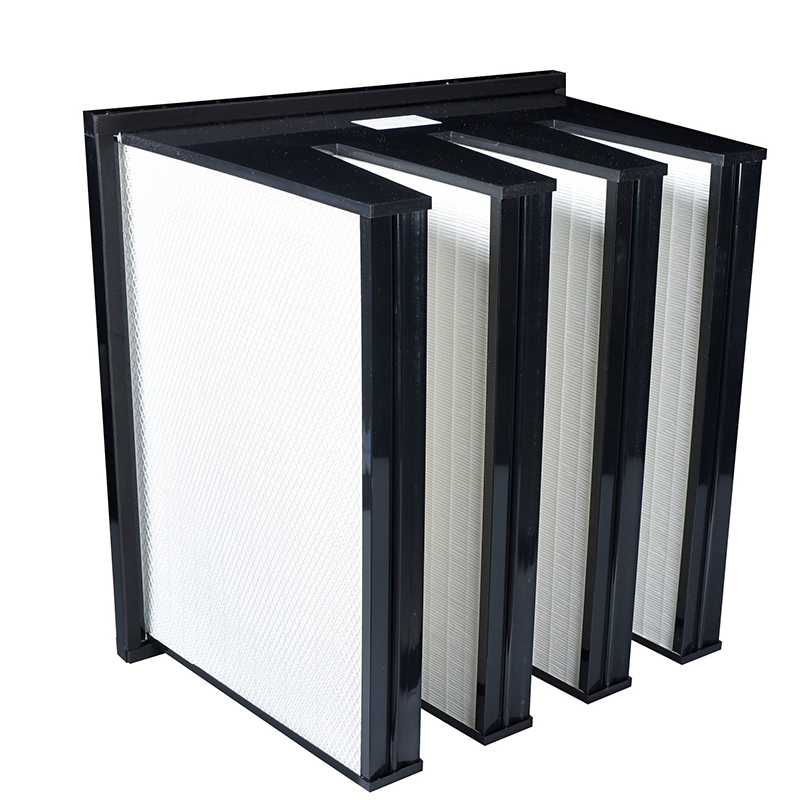

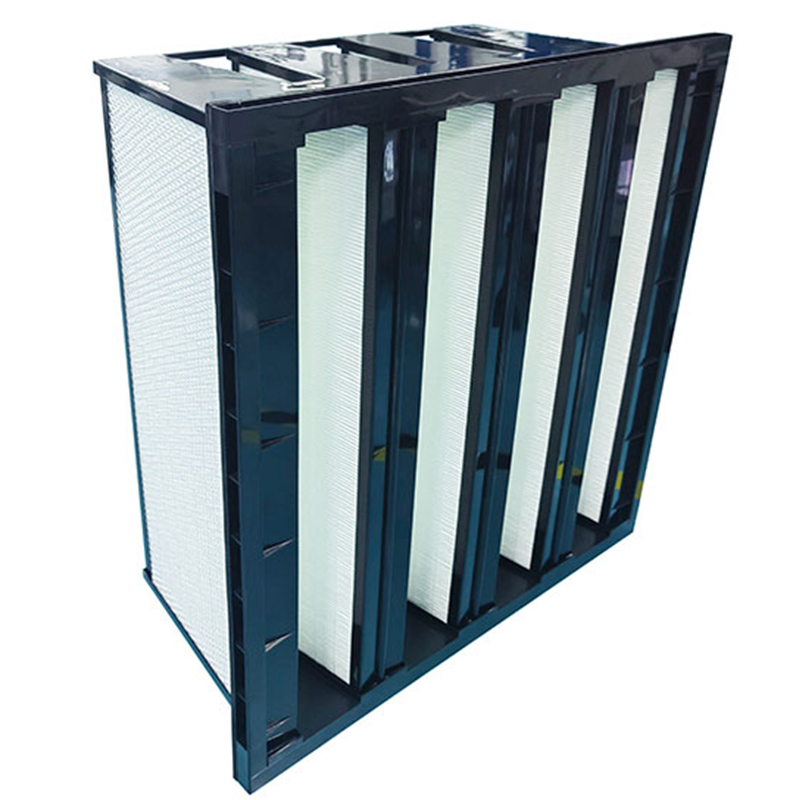

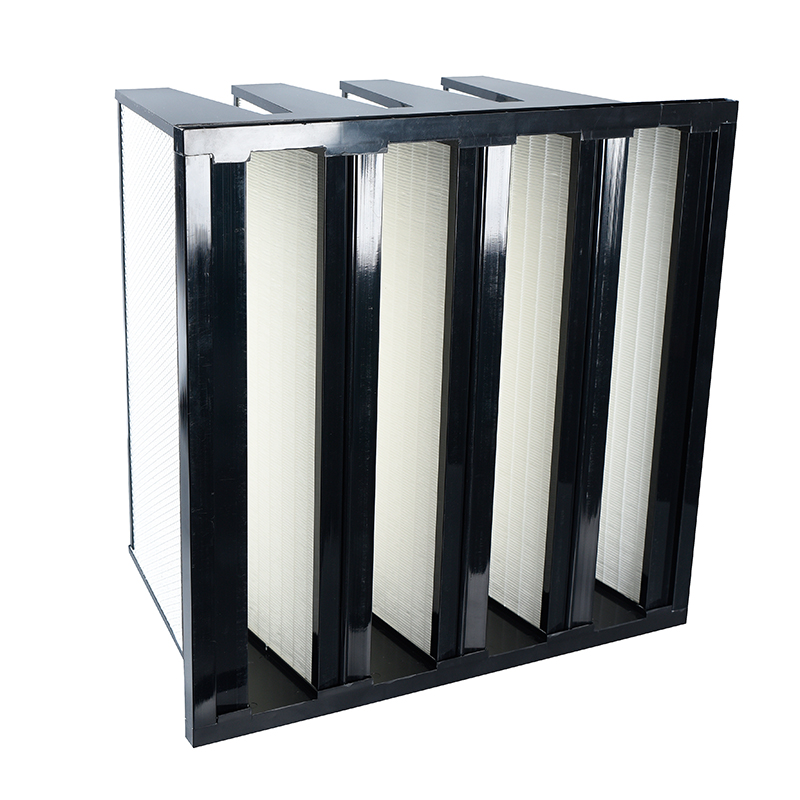

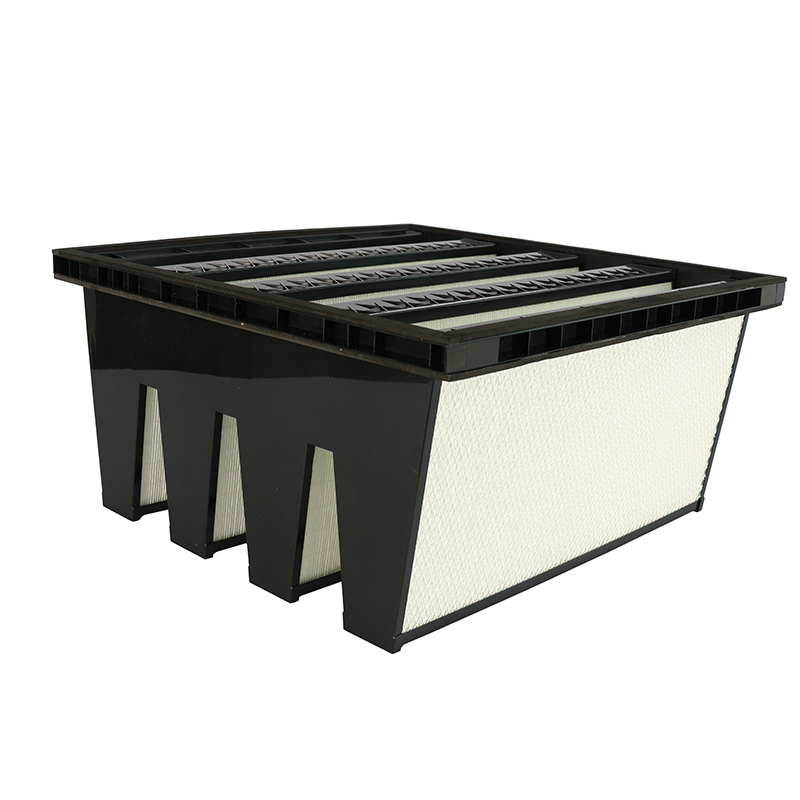

A medium or sub-HEPA V-bank filter is designed to provide high efficiency, strong airflow, and long service life. Its V-shaped structure greatly increases the filtration area, allowing the filter to capture more dust while keeping airflow resistance low. This makes it a reliable choice for modern ventilation and air purification systems that require stable and efficient performance.
Optional Thickness: 292 / 400mm
Separator: Hot melt bead
Gasket: EVA / EPDM
Sealant: Pu two-component polyurethane glue
Frame: Plastic frame
Media: Micron glass fiber
Efficiency : F6 / F7 / F8 / F9 / H10 / H11 / H12
Max Temperature: 70℃
Max Humidity: 100%
Product Specification
| Actual Size
HxWxD (mm) |
Air Flow
(m³/h) |
Media Area
Flow (m²) |
Velocity
(m/s) |
Media
(Pcs) |
| 287*287*292 | 750 | 4.58 | 2.53 | 4 |
| 490*287*292 | 1300 | 8.13 | 2.57 | 4 |
| 592*287*292 | 1600 | 9.91 | 2.62 | 4 |
| 287*490*292 | 1100 | 6.87 | 2.17 | 6 |
| 490*490*292 | 2000 | 12.20 | 2.31 | 6 |
| 592*490*292 | 2400 | 14.87 | 2.30 | 6 |
| 287*592*292 | 1650 | 9.16 | 2.70 | 8 |
| 490*592*292 | 2650 | 16.26 | 2.68 | 8 |
| 592*592*292 | 3400 | 19.83 | 2.69 | 8 |
Product Features
Applications
V-bank filters are ideal for environments with strict cleanliness requirements. They are widely used in aviation facilities, electronics manufacturing, semiconductor and chip production, biopharmaceutical plants, hospitals, food processing factories, and other controlled environments.
