High efficiency, good sealing, low resistance, long life-span, and light weight, convenient installation and replacement.
High efficiency, good sealing, low resistance, long life-span, and light weight, convenient installation and replacement.
Optional Thickness: 38 ~ 120mm
Separator: Hot melt bead

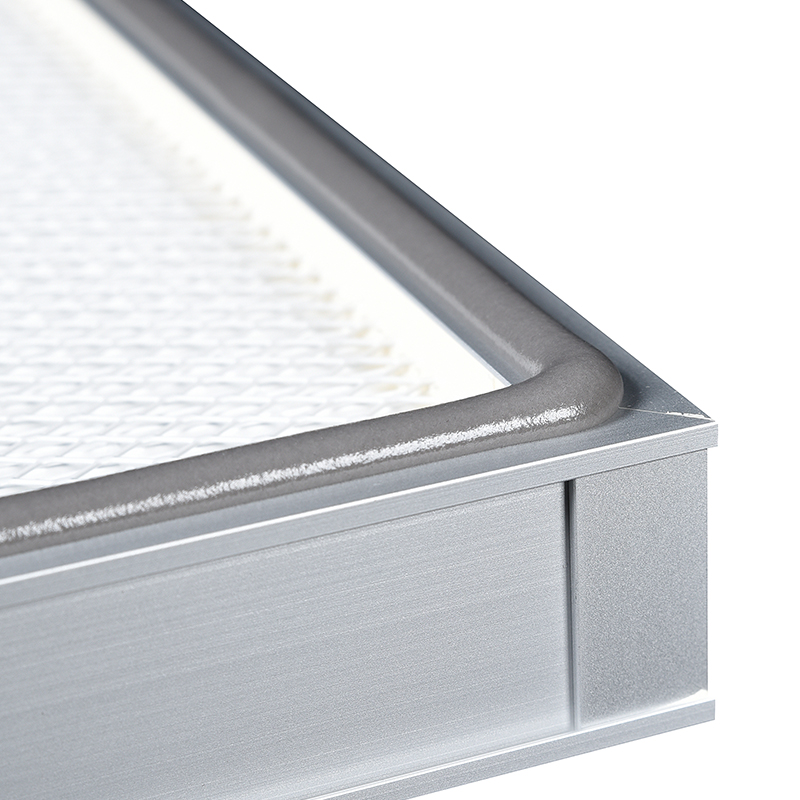

Gasket: Pu endless gasket / EVA / EPDM
Sealant: Pu two-component polyurethane glue
Frame : Aluminum / GI / SUS / MDF
Media: Micro glass fiber
Efficiency : H13 / H14 / U15 / U16 / U17
Max Temperature: 70℃
Max Humidity: 100%
Product Overview

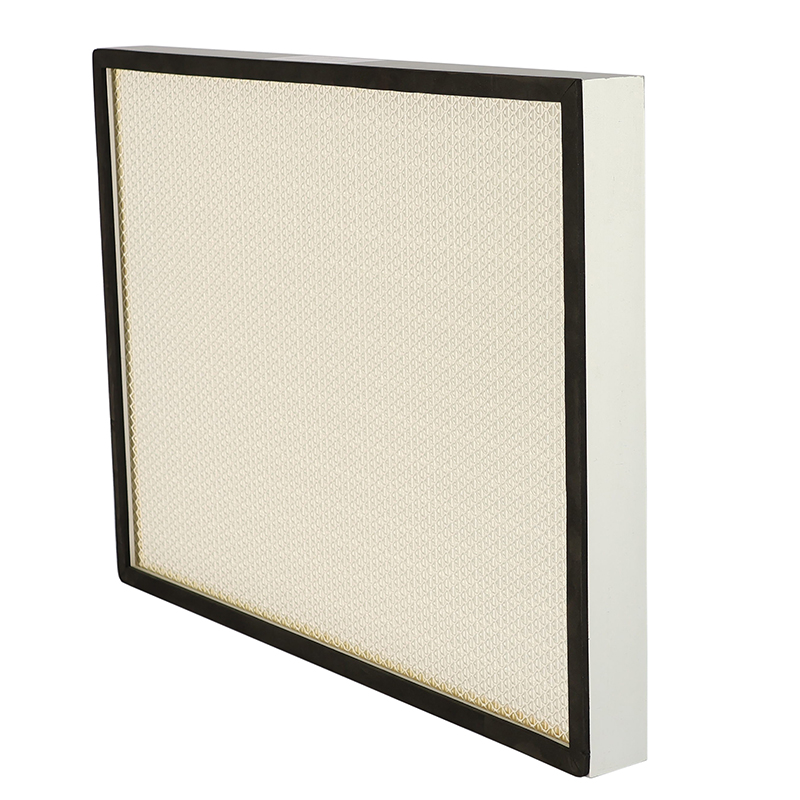

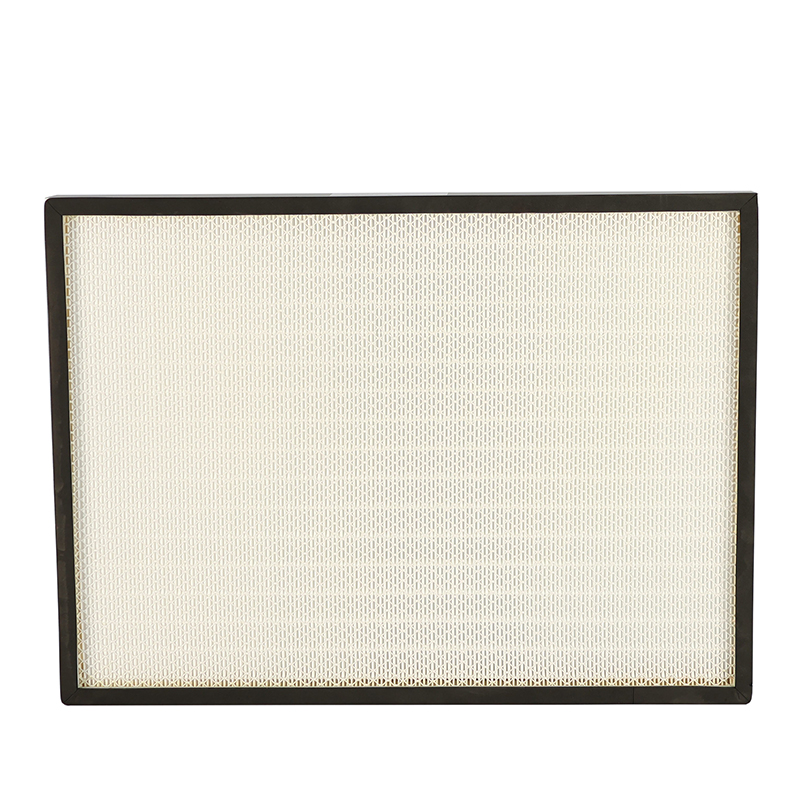

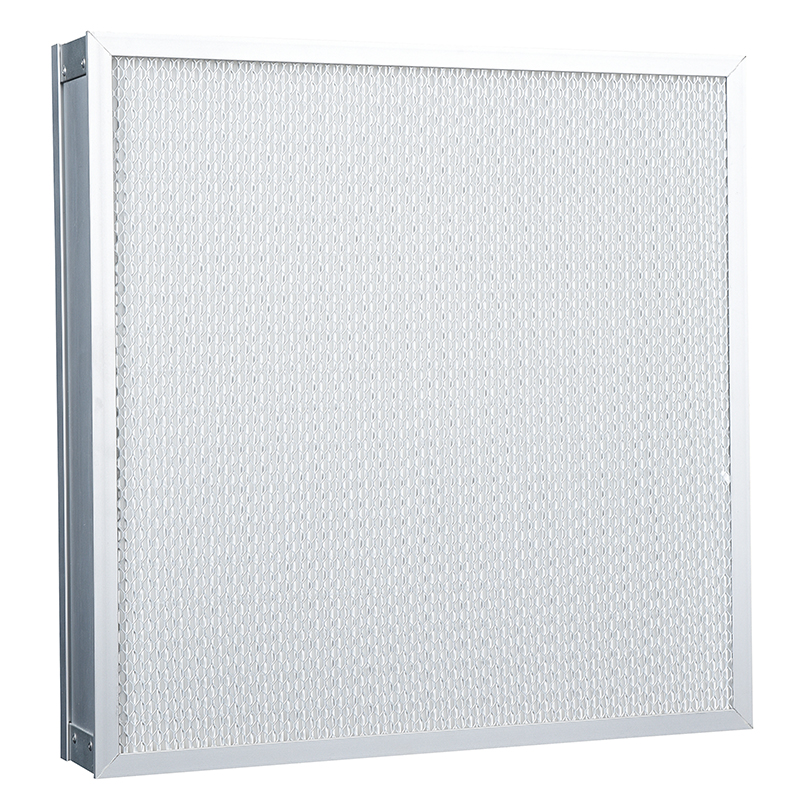

The Mini-Pleat Filter is a high-efficiency air filter designed to capture extremely fine particles while keeping airflow resistance low. It uses specially engineered filter media that traps both tiny and larger airborne contaminants without reducing air volume.
Thanks to its mini-pleat structure, the filter offers a significantly larger surface area—over five times more than traditional pleated filters. This larger filter area improves dust-holding capacity, enhances filtration efficiency, and extends service life. With proper care, Mini-Pleat HEPA and ULPA filters can last up to one year.
These filters are ideal for environments that require clean, controlled air quality, such as hospitals, air purifiers, laboratories, and computer clean rooms.
PRODUCT SPECIFICATION
| Actual Size HxWxD (mm) |
Air Flow (m³/h) |
Media Area Flow (m²) |
Velocity (m/s) |
| 484*484*50 | 500 | 4.81 | 0.55 |
| 610*915*50 | 1100 | 11.29 | 0.55 |
| 305*610*69 | 500 | 4.92 | 0.75 |
| 610*610*69 | 1000 | 10 | 0.75 |
| 610*915*69 | 1500 | 14.84 | 0.75 |
| 610*1220*69 | 2000 | 19.68 | 0.75 |
| 610*915*96 | 2400 | 23.19 | 1.2 |
| 610*1220*96 | 3200 | 30.76 | 1.2 |
| 870*1170*69 | 2750 | 27.08 | 0.75 |
| 1170*1170*69 | 3700 | 36.52 | 0.75 |
Key Features
◎ Low airflow resistance for efficient operation
◎ Reduced operating cost due to energy-saving performance
◎ Lightweight design for easy handling
◎ Quick installation and convenient replacement
◎ Long service life with stable performance
◎ 100% factory-tested to ensure quality
◎ Excellent sealing performance to prevent air leakage
◎ Ultra-high filtration efficiency (HEPA / ULPA grade)
Applications
HEPA Mini-Pleat Filters
Used widely for terminal filtration in cleanrooms, ensuring clean and safe air in industries such as electronics, healthcare, pharmaceuticals, and precision manufacturing.
ULPA Mini-Pleat Filters
Ideal for areas that require extremely high cleanliness, including:
